Signature Series Multi-Vehicle Synthetic Automatic Transmission Fluid

Product Code: ATFPK

AMSOIL Signature Series Multi-Vehicle Synthetic ATF is engineered to outperform conventional automatic transmission fluids and exceed the performance requirements of most North American, European and Asian vehicles. This sophisticated formulation provides outstanding performance and protection in the severe operating conditions of today's most advanced transmission designs

	Data Sheet
	SDS
	Warranty
	Las Vegas Taxi Cab Field Study
	Bulletin From Filter Manufacturers Council
	ATF and Transmission Filter Change Procedures

Transmission fluid recommendations for Cars and Light Duty Trucks

Package sizes include:

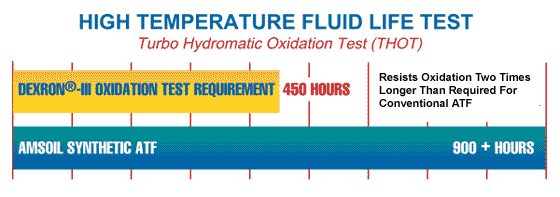

Resists Oxidation and Thermal DegradationAMSOIL ATF resists thermal and oxidative degradation better than conventional transmission fluids, protecting clutches, planetary gears, valves, pumps and seals from damaging sludge and varnish deposits. AMSOIL ATF helps prevent component overheating and ensures cooler, smoother transmission operation.

Provides Low Temperature Protection

AMSOIL ATF outperforms petroleum fluids in low temperature fluidity. In fact, AMSOIL ATF offers twice the cold temperature fluidity required by current automatic transmission fluid specifications. AMSOIL ATF provides easier starting, faster warm-ups, smoother shifting and improved fuel economy.

Antiwear ProtectionAMSOIL ATF provides smooth shifting and long, trouble-free transmission life. In addition, the antiwear additive package makes AMSOIL ATF an excellent lubricant in other hydraulic systems. In tests designed to measure wear characteristics under severe service and high pressure operating conditions, AMSOIL ATF far exceeds the requirements of hydraulic equipment manufacturers.

Extends Drain IntervalsAMSOIL ATF is a stable formulation that lasts longer in service than conventional ATFs. It maintains its viscosity, friction and lubricating properties for extended periods of time, even under severe conditions. AMSOIL ATF maximizes transmission performance and service life while
reducing maintenance costs through longer drain intervals.

AMSOIL ATF is recommended for transmission, hydraulic and other applications requiring any of the following specifications:

• GM DEXRON® II, III & VI
• Ford MERCON®, MERCON® V & SP
• Chrysler ATF+ through ATF+4®
• Honda Z-1 (Not for use in CVT transmissions)
• Toyota Type T and T-IV
• Mitsubishi/Hyundai Diamond SP II & III
• Allison C-3, C-4
• Caterpillar TO-2
• Voith G607, G1363
• ZF TE-ML 14A, 14B, 14C
• Mercedes Benz 236.1, 236.2, 236.6, 236.7, 236.9
• BMW 7045E
• NAG 1 & 2
• JWS 3309
• LT 71141 (ESSO)
• Nissan Matic D, J & K
• Vickers I-286S & M-2950S

Excellent for power steering units that use ATF.

Service Life

AMSOIL Synthetic Automatic Transmission Fluid is recommended for use up to 50,000 miles under severe service* and up to 100,000 miles under normal service* or according to the vehicle manufacturer recommended intervals, whichever is longer. AMSOIL recommends thoroughly draining the transmission and flushing with new AMSOIL ATF to achieve a minimum 90% purity of new transmission fluid. Drain intervals may be extended further with oil analysis.

* As defined by the vehicle or transmission manufacturer.
