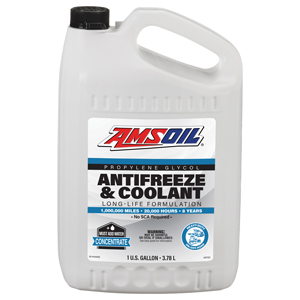

Low Toxicity Antifreeze and Engine Coolant

Product Code: ANT

AMSOIL Propylene Glycol Antifreeze & Coolant is formulated to provide benefits beyond those provided by today's conventional antifreeze and coolant products. Unlike conventional ethylene glycol-based products, which are acutely toxic, AMSOIL Propylene Glycol Antifreeze & Coolant is biodegradable and its low toxicity limits the threat to children and animals. Its unique formulation provides maximum cooling system protection in extreme temperatures and operating conditions.

	Data Sheet
	SDS
	Warranty

Package sizes include:

Low Toxicity, Biodegradable

Conventional ethylene glycol-based coolants are toxic, presenting a poisoning risk if ingested by children, pets, livestock or wildlife. AMSOIL Propylene Glycol Antifreeze & Coolant is biodegradable, and its low toxicity limits poisoning risk.

Helps Prevent Metallic Corrosion and Erosion

AMSOIL Propylene Glycol Antifreeze & Coolant is formulated with unique organic acids that form a protective layer that prevents corrosion on metal components. Independent tests reveal it greatly surpasses standards for metallic corrosion and erosion, achieving nearly perfect scores in ASTM corrosion and erosion testing on cast aluminum cylinder heads, steel, copper, solder, brass and cast iron and aluminum water pumps.

Anti-Scale

AMSOIL Propylene Glycol Antifreeze & Coolant is a polyorganic acid formulation that does not contain inorganic acid salts (phosphate, nitrate, nitrite, silicate, borate, amine) found in conventional and hybrid organic acid (HOAT) antifreeze/coolants. These materials are responsible for almost all scaling issues in cooling systems, commonly reacting with calcium and magnesium in water to form precipitates that adhere to metal surfaces and create scale and corrosion. They can also precipitate to form scale if the antifreeze/coolant inhibitor system is at the wrong pH or mixed with incompatible products. AMSOIL Propylene Glycol Antifreeze & Coolant virtually eliminates scaling problems. It is much more resistant to issues caused when calcium/magnesium are inadvertently introduced to the radiator through tap water.

Cavitation/Pitting Protection

AMSOIL Propylene Glycol Antifreeze & Coolant effectively protects cylinder liners against cavitation erosion/corrosion pitting, without the problems associated with nitrite and nitrite/molybdate technology. Nitrites can cause aluminum corrosion, and they are being banned from coolants used by a growing number of manufacturers in both the heavy-duty and automotive markets. AMSOIL Propylene Glycol Antifreeze & Coolant is a top-performing technology that performs extremely well in ASTM D7583 (John Deere Cavitation Test) testing.

Long-Life Formulation

AMSOIL Propylene Glycol Antifreeze & Coolant eliminates the need for supplemental coolant additives (SCAs), extenders and recharging cooling systems. It provides extended service life in all gasoline and diesel vehicles, with recommended intervals of 150,000 miles or five years, whichever comes first, in passenger cars and light trucks and 600,000 miles, 12,000 hours of operation or six years, whichever comes first, in heavy-duty and off-road applications.

Compatible With Other Fluids

AMSOIL Propylene Glycol Antifreeze & Coolant is dyed neutral yellow and is compatible with all ethylene and propylene antifreeze and coolant colors, as well as all plastics and elastomers (hoses, gaskets, etc.) found in cooling systems. It is also compatible with fully formulated diesel antifreezes and other organic acid technology (OAT) and hybrid organic acid technology (HOAT) formulations. Mixing propylene and ethylene glycol formulations can make it difficult to predict freeze protection. If mixing for top-off is unavoidable, it is recommended to flush the cooling system at the next convenient opportunity.

Boiling Point (sea level)

• 219°F at 40 percent antifreeze concentration, 222°F at 50 percent, 225°F at 60 percent.

• Increase by 40° to 45°F if a 15 psi radiator cap is used.

Applications

AMSOIL Propylene Glycol Antifreeze & Coolant is formulated for use in ALL domestic and import passenger cars and light trucks and designed to meet the following heavy-duty specifications:

• ASTM D4985, D6210

• Case IH

• Caterpillar EC-1

• Chrysler MS7170

• Cummins CES14603

• Detroit Diesel 7SE298, 93K217

• Fiat Professional; Fiat Truck

• Ford WSS-M97B51-A1

• Freightliner 48-22880

• John Deere 8650-5

• Mack Truck CNH

• MTU MTL5048, 5049

• New Holland

• PACCAR: Kenworth, Peterbilt

• TMC of ATA RP329, 330, 338

• US Military CID A-A-52624A

Service Life

• Protection up to 150,000 miles or 5 years, whichever comes first, in passenger cars and light trucks.

• Protection up to 600,000 miles, 12,000 hours of operation or 6 years, whichever comes first, in heavy-duty applications.

• Does not require use of supplemental coolant additives (SCAs) or extenders.

Directions for Use

• High-quality water is essential for proper cooling system protection. Mix with distilled water or high-quality water containing less than 100 ppm total hardness (calcium and magnesium compounds). Check antifreeze/coolant-mix freezing point.

• Do not remove radiator cap when engine is hot.

• Used antifreeze/coolant is hazardous. Clean up and dispose of properly following local regulations.

• Check owner’s manual for maintenance and top-off guidelines
