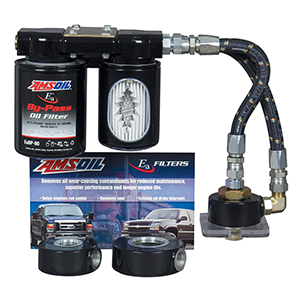

Ford 6.7L Engine Dual Remote By-Pass Filter Kit


Product Code: BMK28

Ford 6.7L Engine Dual Remote By-Pass Filter Kit.  The Ea By-Pass Oil Filter (EaBP) provides the best possible filtration protection against wear and oil degradation. Working in conjunction with the engine's full-flow oil filter, the AMSOIL Ea By-Pass Filter operates by filtering oil on a "partial-flow" basis. It draws approximately 10 percent of the oil pump's capacity at any one time and traps the extremely small, wear-causing contaminants that full-flow filters can't remove. The AMSOIL Ea Bypass Filter typically filters all the oil in the system several times an hour, so the engine continuously receives analytically clean oil

Data Sheet
Warranty

Typical Installation Diagram for BMK28 Kit.

Click on diagram for larger image  (Opens a new browser window)

BMK28 Installation and Servicing Instructions

See the By-Pass Replacement Parts Lists

AMSOIL By-Pass Filter Replacement Chart

By-pass installations

By-Pass Filtration System Application Guide


Higher Efficiency

AMSOIL EaBP Filters have an efficiency of 98.7 percent at two microns. At normal operating RPMs the EaBP Filter will filter all of the oil in a typical five quart sump in less than 10 minutes.


Superior Construction

The superior construction of AMSOIL EaBP Filters provides better sealing and increased longevity along with superior corrosion resistance. AMSOIL EaBP Filters have a marine powder coated exterior; and their zinc-dichromate base plates increase rust protection. EaBP Filters have a nitrile HNBR gasket and an orange silicone anti-drain valve. The two stage pleated and layered cellulose/full synthetic media has an efficiency rating of 98.7 percent at two microns.


Longer Lasting

When used in conjunction with AMSOIL motor oil and an AMSOIL EaO or Donaldson Endurance filter, the EaBP90, 100 and 110 Filters should be changed every other full-flow filter change up to 60,000 miles or one year whichever comes first. When used with other brands of motor oil or full-flow filters, the EaBP Filter should be changed every other full-flow filter change. AMSOIL recommends using oil analysis when extending oil drain intervals.



AMSOIL recommends changing the EaBP120 every other full-flow filter change up to 90,000 miles or one year whichever comes first. Extended oil drain intervals should always be accompanied by an oil analysis program.


Increased Oil Capacity

The increased fluid system capacity and filtration life provides improved oil cooling and ensures that equipment constantly runs on clean oil. Engine efficiency is increased, providing extended engine life.


Soot Removal

AMSOIL has designed a high-efficiency by-pass filter element that is also a soot removal device. AMSOIL Ea By-Pass Filters use a synthetic/cellulose sandwiched media. The inner layer of the element is composed of a highly efficient cellulose media covered with a full synthetic media outer layer. These filters remove 39 percent of soot contaminants less than one micron. Soot removal efficiency increases approximately 10 to 14 percent when the EaBP Filter is used in conjunction with a standard full-flow filter.


By-Pass Filtration Benefits

  • Dramatically Extended Drain Intervals

  • Improved Oil Cooling

  • Increased Filtration Capacity and Life

  • Increased Fluid System Capacity

  • Efficient Small Particle and Soot Removal

  • Significantly Extended Engine Life

  • Equipment Constantly Runs on Clean Oil

  • Increased Engine Efficiency

  • Remove Particles Less Than One Micro


Bypass filter elements
EaBP90 Filter
EaBP100 Filter
EaBP110 Filter
